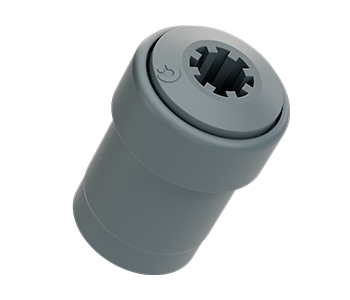

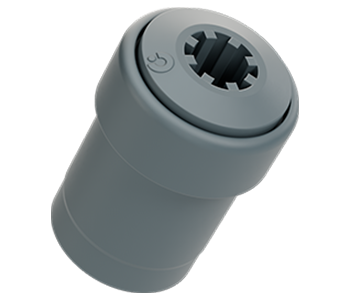

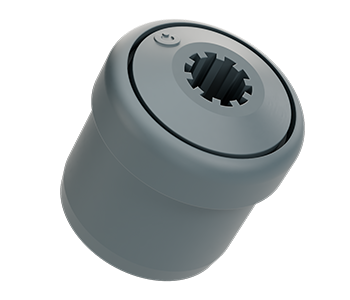

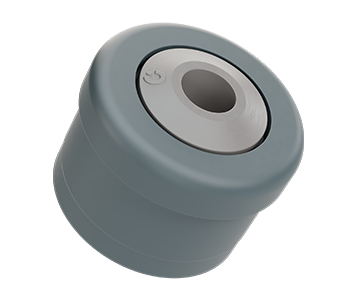

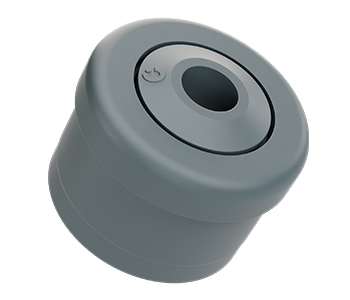

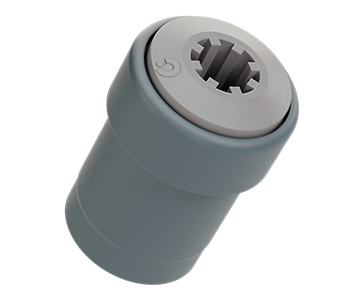

Пластикові підшипникові вузли Markes KTR-00/01
Технічні характеристики
Корпус: пластик
Внутрішня обойма: пластик
Кулька
00: Сталь
01: 1.4034, нержавійюча сталь
KTR-16/00.01
| Type | Normal .00 |
Stainless .01 |

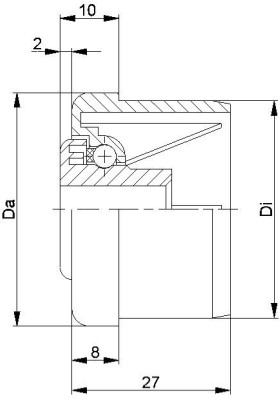

Di+0,15 | Da | Load Rating C [daN] |
| KTR-16x1,0.00.05 | x | 14,1 | 15,9 | 3 | |
| KTR-16x1,0.00.06 | x | 14,1 | 15,9 | 3 | |
| KTR-16x1,0.01.05 stainless | x | 14,1 | 15,9 | 3 | |
| KTR-16x1,0.01.06 | x | 14,1 | 15,9 | 3 | |
| KTR-20x1,0.00.06 | x | 18,1 | 19,9 | 5 | |
| KTR-20x1,0.00.08 | x | 18,1 | 19,9 | 5 | |
| KTR-20x1,0.01.06 stainless | x | 18,1 | 19,9 | 5 | |
| KTR-20x1,0.01.08 | x | 18,1 | 19,9 | 5 | |
| KTR-20x1,5.00.06 | x | 17,1 | 19,9 | 5 | |
| KTR-20x1,5.00.08 | x | 17,1 | 19,9 | 5 | |
| KTR-20x1,5.01.06 stainless | x | 17,1 | 19,9 | 5 | |
| KTR-20x1,5.01.08 | x | 17,1 | 19,9 | 5 | |
| Type | Normal .00 |
Stainless .01 |
Di+0,25 | Da | Load Rating C [daN] |
| KTR-30x1,0.00.06 | x | 28,1 | 29,9 | 7 | |
| KTR-30x1,0.00.08 | x | 28,1 | 29,9 | 7 | |
| KTR-30x1,0.00.10 | x | 28,1 | 29,9 | 7 | |
| KTR-30x1,0.01.06 stainless | x | 28,1 | 29,9 | 7 | |
| KTR-30x1,0.01.08 | x | 28,1 | 29,9 | 7 | |
| KTR-30x1,0.01.10, stainless | x | 28,1 | 29,9 | 7 | |
| KTR-30x1,5.00.06 | x | 27,1 | 29,9 | 7 | |
| KTR-30x1,5.00.08 | x | 27,1 | 29,9 | 7 | |
| KTR-30x1,5.00.10 | x | 27,1 | 29,9 | 7 | |
| KTR-30x1,5.01.06 stainless | x | 27,1 | 29,9 | 7 | |
| KTR-30x1,5.01.08 | x | 27,1 | 29,9 | 7 | |
| KTR-30x1,5.01.10 | x | 27,1 | 29,9 | 7 | |
| KTR-30x1,8.00.06 | x | 26,5 | 29,9 | 7 | |
| KTR-30x1,8.00.08 | x | 26,5 | 29,9 | 7 | |
| KTR-30x1,8.00.10 | x | 26,5 | 29,9 | 7 | |
| KTR-30x1,8.01.06 | x | 26,5 | 29,9 | 7 | |
| KTR-30x1,8.01.08 stainless | x | 26,5 | 29,9 | 7 | |
| KTR-30x1,8.01.10, stainless | x | 26,5 | 29,9 | 7 | |
| KTR-30x2,0.00.06 | x | 26,35 | 29,9 | 7 | |
| KTR-30x2,0.00.08 | x | 26,35 | 29,9 | 7 | |
| KTR-30x2,0.00.10 | x | 26,35 | 29,9 | 7 | |
| KTR-30x2,0.01.06 stainless | x | 26,35 | 29,9 | 7 | |
| KTR-30x2,0.01.08 | x | 26,35 | 29,9 | 7 | |
| KTR-30x2,0.01.10 | x | 26,35 | 29,9 | 7 | |
| KTR-40x1,5.00.06 | x | 37,1 | 39,9 | 7 | |
| KTR-40x1,5.00.08 | x | 37,1 | 39,9 | 7 | |
| KTR-40x1,5.00.10 | x | 37,1 | 39,9 | 7 | |
| KTR-40x1,5.01.06 stainless | x | 37,1 | 39,9 | 7 | |
| KTR-40x1,5.01.08 | x | 37,1 | 39,9 | 7 | |
| KTR-40x1,5.01.10, stainless | x | 37,1 | 39,9 | 7 | |
| KTR-40x2,3.00.06 | x | 35,5 | 39,9 | 7 | |
| KTR-40x2,3.00.08 | x | 35,5 | 39,9 | 7 | |
| KTR-40x2,3.00.10 | x | 35,5 | 39,9 | 7 | |
| KTR-40x2,3.01.06 stainless | x | 35,5 | 39,9 | 7 | |
| KTR-40x2,3.01.08 | x | 35,5 | 39,9 | 7 | |
| KTR-40x2,3.01.10, stainless | x | 35,5 | 39,9 | 7 |
KTR-20/00.01
KTR-30/00.01
KTR-40/00.01
D [mm] 16 - 40
d [mm] 5; 6; 8; 10
C [daN] 3 - 7
T [°C] 0°- 80°
-
Carton [pcs.]
KTR-16: 500/2500
KTR-20: 500/1000
KTR-30: 250/500
KTR-40: 250
